24V 6000RPM 0.011Nm 7W 0.54A Ф22x50mm Brushless DC Motor
Manufacturer Part Number: 22BL02602-0007-XXX
Frame Size: Ф22mm
Body Length: 50mm
Rated Voltage: 24V
Rated Speed: 6000RPM
Rated Torque: 0.011Nm
Power: 7W
- Fast Delievery
- Quality Assurance
Customization Available
Product Introduction
Product Overview
This 24 V BLDC motor is very compact with a frame size of 22mm and a body length of 50mm. Having three phases, It is designed to operate at a rated speed of 6000 RPM, a rated torque of 0.011Nm, and a power output of 7 watts. This high-speed brushless DC motor can be well operated in a broad temperature range from -20°C to 55°C, exhibiting outstanding performance even in extreme environmental conditions. With insulation of Class B, it provides reliable electrical protection for your equipment. Having features of high speed, and low noise, this BLDC motor is commonly used in various applications, including miniature fans, small robotics, and other systems requiring precise and efficient motor control.
General Specifications
|
Winding Type |
star |
|
Shaft Axial Play |
0.025mm |
|
Ambient Temperature |
-20℃~55℃ |
|
Ambient Humidity |
<85% ( without condensation ) |
|
MAX.Radial Force |
10N@10mm from the flange |
|
MAX.Axial Force |
4N |
|
Insulation Class |
Class B |
|
Insulation Resistance |
100MΩMin.@500VDC |
Wiring
|
Lead No. |
Lead Color |
Lead Gauge |
Function |
Description |
|
1 |
Red |
UL1061 28AWG |
VCC |
Supply Voltage for Hall Sensors |
|
2 |
Black |
GND |
Ground for Hall Sensors |
|
|
3 |
Yellow |
HALL A |
||
|
4 |
White |
HALL B |
||
|
5 |
Blue |
HALL C |
||
|
6 |
Orange |
Phase A |
||
|
7 |
Green |
Phase B |
||
|
8 |
Brown |
Phase c |
Technical Specification
|
Model NO. |
Rated Voltage |
Speed |
Rated Torque |
Power |
Rated Current |
No-load Speed |
No-load Current |
Resistance/line-line |
Inductance/line-line |
Back EMF Constant |
Length |
|
VDC |
rpm |
N.m |
W |
A |
rpm |
A |
Ω |
mH |
V/krpm |
mm |
|
|
22BL02602-0007-XXX |
24 |
6000 |
0.011 |
7 |
0.54 |
8000 |
0.11 |
13.9 |
3.79 |
3.5 |
50 |

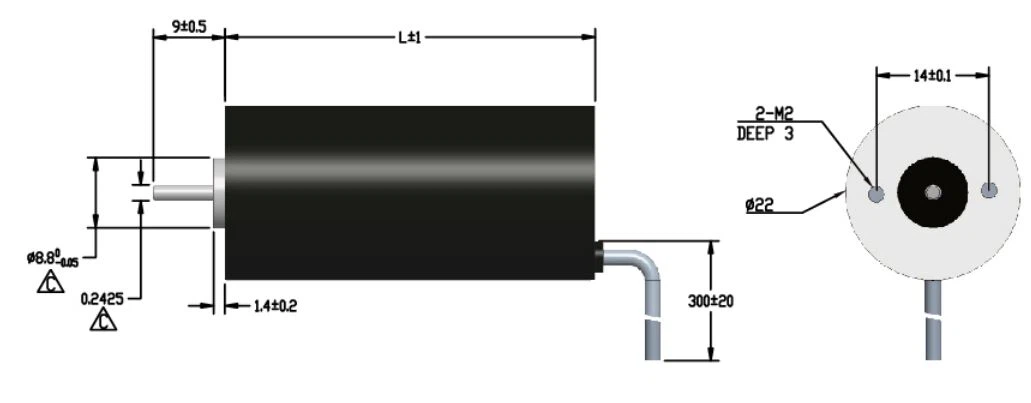

Mechanical Dimension
FAQ
Q: What determines BLDC motor speed?
A: In a brushless DC motor, the relationship between the applied voltage and the load torque determines the rotational speed. This means that, when using the motor, you can control the rotational speed of the motor by changing the applied voltage
Q: If l have a product that wants to be made in another special material, can you do it?
A: Of course, you just need to provide us with designed drawings or samples and the R&D department will estimate whether we can do it or not, and we will give you the most satisfactory reply.
Q: What is the common way to control a BLDC motor?
A: The most common way to control a BLDC motor is to use Hall Sensors to determine the rotor position.
Q: What is the maximum efficiency of BLDC?
A: BLDC motors have reportedly hit 85 to 90 percent efficiency margins, which is higher than the standard brushed motors at 75 to 80 percent.
