Geared Motor

SIT supplies two series of geared motors for our customers:  geared stepper motor and geared brushless DC motor. Each stepper motor or BLDC motor is integrated with a planetary gearbox. The geared motors in SIT boast a range of benefits, including their uncomplicated design, compact dimensions, lightweight build, low inertia, resilience to impact, and straightforward maintenance requirements. These compact and efficient devices serve as a bridge between electrical energy and mechanical power, providing controlled motion, torque amplification, and precise speed regulation, offering desired torque and speed combinations for your applications.



Geared motors find their place in many industries, such as manufacturing, automation, automotive systems, robotics, etc, ensuring precision, reliability, and efficiency in a multitude of mechanical operations. SIT can provide customized services for our customers. Just tell us the speed and torque requirements of the final machine and we will integrate the most suitable motor and gearbox for you.



Advantages of geared Motor

Torque Multiplication

By using a geared motor, the motor's torque can be amplified through the gear ratio and the gear efficiency. Compared to an un-geared, standard motor, a geared motor are able to deliver higher levels of both running and holding torque

Speed Reduction

Geared motors can achieve effective speed reduction through a precisely designed gear system, which can convert the high-speed rotation of the motor into higher torque and lower speed output. This characteristic enhances the system performance, as many motors can't work efficiently at low speeds.

Saving Space

Geared motors are compact and space-efficient compared to traditional systems where a separate motor and gearbox are used. Integrating the gearbox directly with the motor eliminates the need for additional space and supports a more streamlined and compact design

Energy Efficiency

Geared motors can contribute to energy efficiency in certain applications. By adjusting the gear ratio, the motor can operate at its optimal speed and efficiency, reducing energy consumption. Additionally, the use of efficient gear designs and materials helps minimize energy losses during transmission.







Geared Motor Installation Guide

1

 Step1

Confirm the specifications of the motor and planetary gearbox, and clean the mounting surface of the motor and gearbox.

2

Step 2

. Remove the two black dust covers from the body.

geared motor installation 3

Step 3

a: remove the original key from the motor

b: Install the balance key if necessary

geared motor installation 4

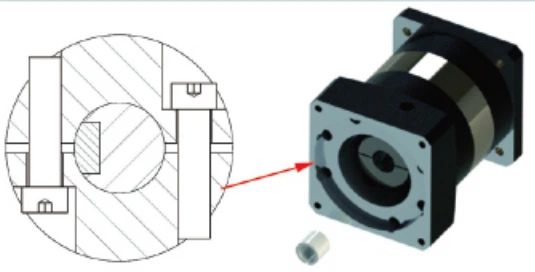

Step 4

Confirm Motor shaft dimensions and install bushing if necessary.

geared motor installation 5

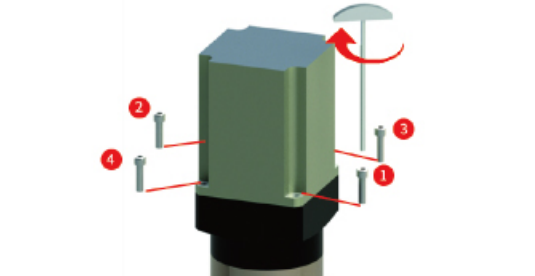

Step 5

Mount the motor vertically, apply 5% recommended torque by screw torque meter, following the above order 1-4, and gently lock the screw with the gasket using by wrench.



geared motor installation 6

Step 6

 Put the motor and the planetary gearbox upright to establish the torque value. Following orders 1-4,  lock the screw with a torque wrench.

geared motor installation 7

Step 7

According to the recommended torque, tighten the two screws on the locking ring with a wrench.

geared motor installation 8

Step 8

Put back the two black dust covers.
