SIT is one of the largest stepper motor manufacturers in China. We manufacture a wide range of hybrid stepper motors, from the smallest Nema 6 stepper motor to the largest Nema 34 stepper motor. And the most popular stepper motors among these stepper motors are Nema17, Nema23, and Nema34. Meanwhile, stepper motors also have other classification ways, like by wiring (unipolar stepper motor and bipolar stepper motor), and stepper angles ( 0.9° stepper motor, 1.2° stepper motor, 1.8° stepper motor, 3.6° stepper motor, 3.75° stepper motor, etc) Most of the stepper motors can be tailored to our customers.
For meeting higher torque requirements, SIT also offers geared stepper motors For any questions regarding stepper motor requirements, please feel free to reach out to our sales team. SIT specializes in developing personalized solutions for the most demanding motion control projects.
Hybrid stepper Motor Advantages
High Resolution
Hybrid stepper motor adopts subdivision drive technology, which can realize high-precision positioning and control, so its stepping angle is usually up to 1.8 degrees or even smaller.
High Torque
Hybrid stepper motors can generate high torque, due to combining the advantages of permanent magnets and variable reluctance. It has higher torque when compared with a VR-type stepper motor of the same size.
Low Power Consumption
Hybrid stepper motors are energy efficient because they do not require energy input for positioning and static hold, so their power consumption is relatively low.
Simple Structure
Compared to other types of stepper motors, its structure is relatively simple, so it is easy to manufacture and maintain.

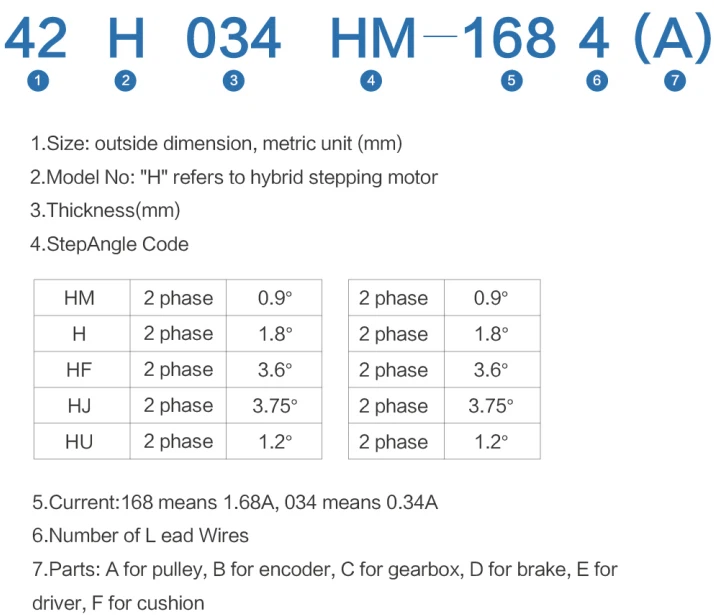

Naming Rule of Hybrid Stepper Motor
Application of Hybrid Stepper Motor
Industrial Automation
Hybrid stepper motors are widely used for controlling robotic arms and for a variety of automation equipment.
3D Printing Industry
In 3D printing technology, hybrid stepper motors are used to drive the positioning of the print head and the build platform
Medical Equipment
Hybrid stepper motors are widely used to control medical imaging equipment, precision instruments, and automated surgical equipment.
Surveillance System
Hybrid stepper motors are an important part of surveillance technology, providing precise control for surveillance systems
customized stepper motor cases
With an experienced and professional R&D team, SIT can meet clients' different needs for customized stepper motors.
IP67 NEMA 23 stepper motor
Customized stepping motors with a high level of protection for outdoor applications, such as solar sun chasing systems and landscape light control.
NEMA 34 stepper motor for marine use
This customized NEMA 34 hybrid stepping motor is used in marine valve control to replace conventional asynchronous motors
Threaded shaft stepper motors
SIT offers a full range of NEMA 8 threaded shaft stepper motors to NEMA 23 threaded shaft stepping motors for medical, industrial control, textile and other industries.
NEMA17 acid corrosion-resistant stepping motor
The stator and rotor are specially designed and developed for the special acid gas environment and explosion-proof environment of gas pipelines.
Find professional stepper motors manufacturers and suppliers in China here! With abundant experience, we warmly welcome you to wholesale high quality stepper motors at competitive price from our factory. Contact us for more details.
