24V 3000RPM 0.096Nm 30W 2.0A Ф57x40mm Brushless DC Motor

24V 3000RPM 0.096Nm 30W 2.0A Ф57x40mm Brushless DC Motor

Manufacturer Part Number: 57BL02302-0030-XXX
Frame Size: Ф57mm
Body Length: 40mm
Rated Voltage: 24V
Rated Speed: 3000RPM
Rated Torque: 0.096Nm
Power: 30W

Send Inquiry
  • Fast Delievery
  • Quality Assurance
  • Customization AvailableCustomization Available
Product Introduction

General specifications

Winding Type

star

Shaft Axial Play

0.025mm

Ambient Temperature

-20℃~55℃

Ambient Humidity

<85% ( without condensation )

Max. Radial Force

75N@10mm from the flange

Max. Axial Force

20N

Insulation Class

Class B

Insulation Resistance

100MΩ Min.@500VDC



Wiring

Lead No.

Lead Color

Lead Gauge

Function

Description

1

Red

UL1007/26AWG

VCC

Supply voltage for Hall Sensors

2

Black

GND

Ground for Hall Sensors

3

Yellow

HALL A



4

White

HALL B



5

Blue

HALL C



6

Orange

UL1007/18-22AWG

Phase A



7

Green

Phase B



8

Brown

Phase C





Technical Specification

Model NO.

Rated Voltage

Speed

Rated Torque

Power

Rated Current

No-load Speed

No-load Current

Resistance/line-line

Inductance/line-line

Back EMF Constant

Length


VDC

rpm

N.m

W

A

rpm

A

Ω

mH

V/krpm

mm

57BL02302-0030-XXX

24

3000

0.096

30

2

4100

0.20

1.7

3.4

9.8

40

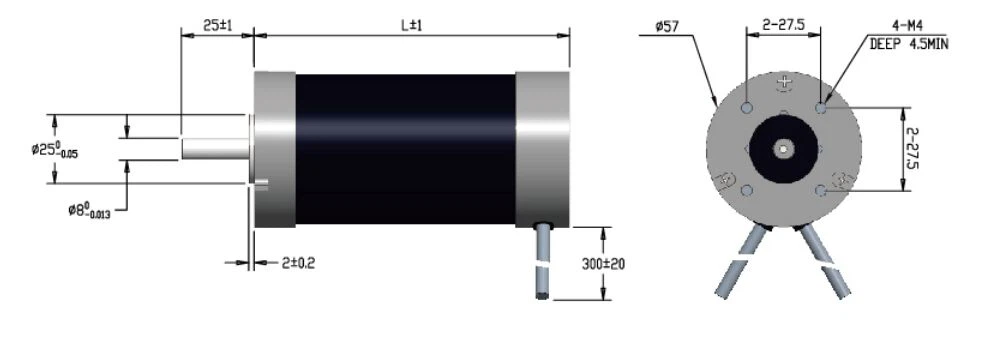

Mechanical Dimension

30



FAQ

Q: What are the advantages of a Brushless DC motor?

A: Brushless DC Motors have the advantages of long life, low noise, high efficiency (low loss), small size, and high stability.



Q: Could you provide a gearbox to equip with BLDC motors?

A: Sure, we can offer a custom gearbox to integrate with BLDC motors.



Q: Can BLDC motors be controlled with a traditional DC motor controller?

A: No, BLDC motors require specialized motor controllers that can perform electronic commutation and provide the necessary current to the motor windings. Traditional DC motor controllers are not compatible.



Q: What are the common control methods for BLDC motors?

A: The most common control methods for BLDC motors are trapezoidal and sinusoidal commutation. Trapezoidal commutation is simpler and suitable for most applications, while sinusoidal commutation provides smoother operation and quieter performance.



Q: What is your minimum order quantity, can you send me samples?

A: MOQ requirement is different from model to model, and this can be discussed case by case. And we can send you samples.
