24V 3500RPM 0.136Nm 50W 3.4A Ф57x44mm Brushless DC Motor

24V 3500RPM 0.136Nm 50W 3.4A Ф57x44mm Brushless DC Motor

Manufacturer Part Number: 57BL02352-0050-XXX
Frame Size: Ф57mm
Body Length: 44mm
Rated Voltage: 24V
Rated Speed: 3500RPM
Rated Torque: 0.136Nm
Power: 50W

Send Inquiry
  • Fast Delievery
  • Quality Assurance
  • Customization AvailableCustomization Available
Product Introduction

General specifications

Winding Type

star

Shaft Axial Play

0.025mm

Ambient Temperature

-20℃~55℃

Ambient Humidity

<85% ( without condensation )

Max. Radial Force

75N@10mm from the flange

Max. Axial Force

20N

Insulation Class

Class B

Insulation Resistance

100MΩ Min.@500VDC



Wiring

Lead No.

Lead Color

Lead Gauge

Function

Description

1

Red

UL1007/26AWG

VCC

Supply voltage for Hall Sensors

2

Black

GND

Ground for Hall Sensors

3

Yellow

HALL A



4

White

HALL B



5

Blue

HALL C



6

Orange

UL1007/18-22AWG

Phase A



7

Green

Phase B



8

Brown

Phase C





Technical Specification

Model NO.

Rated Voltage

Speed

Rated Torque

Power

Rated Current

No-load Speed

No-load Current

Resistance/line-line

Inductance/line-line

Back EMF Constant

Length


VDC

rpm

N.m

W

A

rpm

A

Ω

mH

V/krpm

mm

57BL02352-0050-XXX

24

3500

0.136

50

3.4

4500

0.29

1.12

2.1

5.7

44

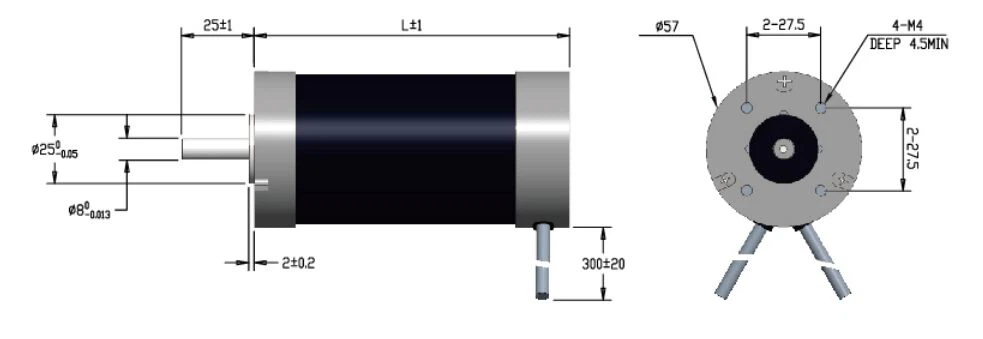

Mechanical Dimension

30

FAQ

Q: What payment methods do you accept?

A: We accept payments via T/T (bank transfer), and for sample orders, Paypal is also available as a payment option.



Q: How long have you been manufacturing and selling motors?

A: We have been actively involved in the manufacturing and sales of motors for more than two decades.



Q: What kind of after-sales service do you provide?

A: We offer a 12-month warranty for our products from the date of dispatch. In addition, we provide free technical advisory services during the initial stages of your project to assist you in making informed decisions and ensuring its success.



Q: What certifications do you hold?

A: We hold ISO9001 and ISO14001 certifications, ensuring our commitment to quality management and environmental standards. Additionally, all our motors are CE certified, guaranteeing compliance with safety and performance regulations.
