24V 3000RPM 1.11Nm 350W 12A Ф85x75mm Brushless DC Motor

24V 3000RPM 1.11Nm 350W 12A Ф85x75mm Brushless DC Motor

Manufacturer Part Number: 85BL02302-0350-XXX
Frame Size: 85x85mm
Rated Voltage: 24V
Rated Speed: 3000RPM
Rated Torque: 1.11Nm
Power: 350W

Send Inquiry
  • Fast Delievery
  • Quality Assurance
  • Customization AvailableCustomization Available
Product Introduction

General Specifications

Winding Type

star

Shaft Axial Play

0.025mm

Ambient Temperature

-20℃~55℃

Ambient Humidity

<85% ( without condensation )

MAX.Radial Force

95N@10mm from the flange

MAX.Axial Force

30N

Insulation Class

Class B

Insulation Resistance

100MΩMin.@500VDC



Wiring

Lead No.

Lead Color

Lead Gauge

Function

Description

1

Red

UL1007/26AWG

VCC

Supply Voltage for Hall Sensors

2

Black

GND

Ground for Hall Sensors

3

Yellow

HALL A



4

White

HALL B



5

Blue

HALL C



6

Orange

UL1007/18AWG

Phase A



7

Green

Phase B



8

Brown

Phase c





Technical Specification

Model NO.

Rated Voltage

Speed

Rated Torque

Power

Rated Current

No-load Speed

No-load Current

Resistance/line-line

Inductance/line-line

Back EMF Constant

Length


VDC

rpm

N.m

W

A

rpm

A

Ω

mH

V/krpm

mm

85BL02302-0350-XXX

24

3000

1.11

350

12

5300

1.02

0.1

0.22

4.8

75

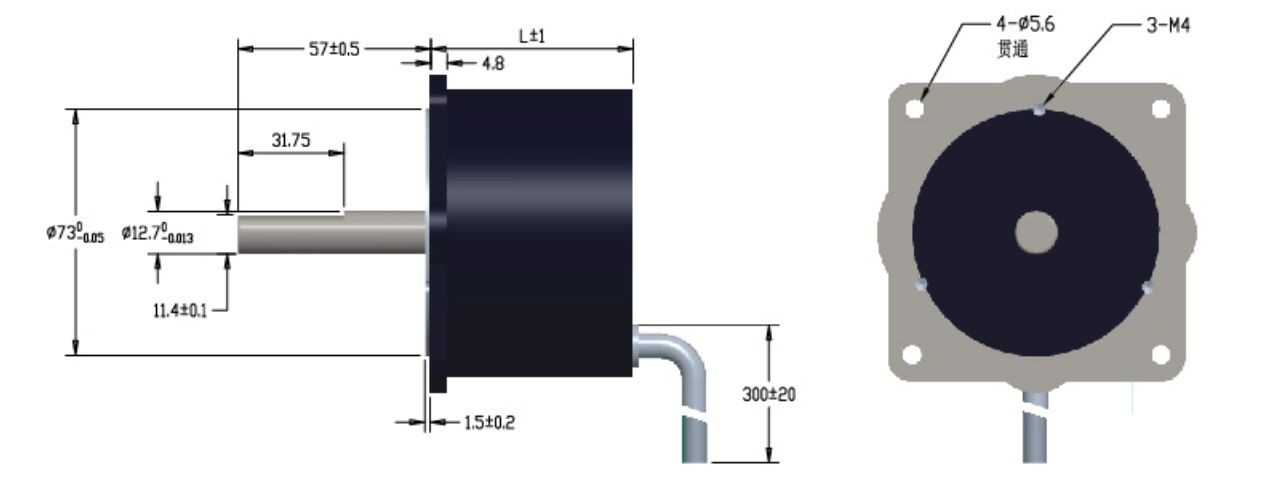

Mechanical Dimension

30

Product detail

Application: model airplanes, medical equipment, household appliances, electric vehicles, precision instruments, etc.

Original: Jiangsu, China

Certification: ISO9001,CE, ISO14001, etc.

Price: Negotiable

Payment term: TT

Packing: export standard

Warranty: 1 year

MOQ: Varies by model

Delivery date: about 30-35 days (For urgent orders, we can expedite);

Market: the United States/South Korea/Sweden/Germany/Italy, Spain, etc.
