22mm Geared Brushless DC Motor
The 22mm geared BLDC motors have a frame size of Φ22mm, consisting of an 22mm economy planetary gearbox and a round 22mm brushless dc motor. They are available in 2 standard models with a gear ratio from 4:1 to 100:1. By combining the advantages of brushless technology, these motors ensure efficient and durable performance, while their variable gear ratios make them versatile and suitable for a broad array of applications.
- Fast Delievery
- Quality Assurance
Customization Available
Product Introduction

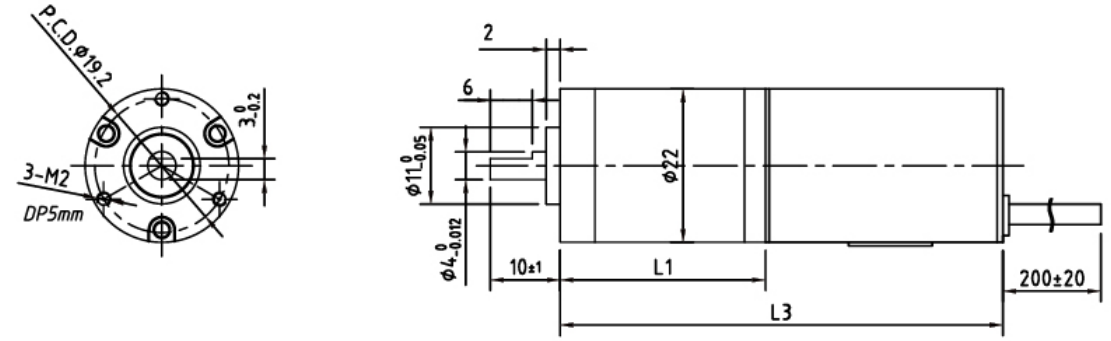

Mechanical Dimension
General Specification
| Winding Type | star |
| Hall Effect Angle | 120°(Electrical Angle) |
| Shaft Axial Play | 0.025mm |
| Ambient Temperature | 0℃-+50℃(Without Condensation)) |
| Ambient Humidity | ＜85% (Without Condensation) |
| Max. Radial Force | 20N |
| Max. Axial Force | 5N |
| Insulation Class | class B |
| Dielectric Strength | one minute@500VAC.5mA |
| Insulation Resistance | 100MΩ Min.@500VDC |
Electric Connection
| Lead NO. | Lead Color | Lead Gauge | Connection |
| 1 | Red | UL1007/26AWG | VCC |
| 2 | Black | GND | |
| 3 | Yellow | HALL A | |
| 4 | White | HALL B | |
| 5 | Blue | HALL C | |
| 6 | Orange | UL1007/22AWG | Phase U |
| 7 | Green | Phase V | |
| 8 | Brown | Phase W |
Gearbox Parameter
| Stage | 1 stage | 2 stage | 3 stage | ||||
| Ratio | 4 | 5 | 20 | 25 | 64 | 100 | |
| Length L1 | mm | 19 | 24.5 | 30 | |||
| Length L2 | mm | 21 | 26.5 | 32 | |||
| Rated load | Nm | 0.3 | 0.5 | 0.8 | |||
| Max load | Nm | 1.2 | 1.2 | 1.2 | |||
| Efficiency η | % | 85% | 75% | 65% | |||
| Backlash | ° | ≤1° | ≤2° | ≤3° | |||
| Weight | KG | 0.2 | 0.25 | 0.3 | |||
| Running environment temperature | ℃ | -20℃~90℃ （Low temperature customizable) | |||||
| Nominal Input Speed n1N | rpm | 3000 | |||||
| Max. input speed n1B | rpm | 5000 | |||||
| Degree of gearbox protection | IP | 54 | |||||
| Lubrication | Life grease lubrication | ||||||
| Noise | dB | 50dB/1m | |||||
| Service Life | hr | ~5000 | |||||
Motor Technical Specification
| Model No. | Back EMF Constant | Rated Voltage | Speed | Rated Torque | Power | Rated Current | No-load Speed | No-load Current | Resistance/line-line | Inductance/line-line | Length |
| V/krpm | VDC | rpm | N.m | W | A | rpm | A | Ω | mH | mm | |
| 22BL02103-0009-XXX | 1.7 | 24 | 10000 | 0.008 | 8.5 | 0.72 | 14000 | 0.25 | 9.7 | 1.67 | 40 |
| 22BL02402-0053-XXX | 3.5 | 24 | 6000 | 0.011 | 7 | 0.54 | 8900 | 0.11 | 13.9 | 3.79 | 50 |
Remark: Customers only need to provide the speed and torque of the finally completed motor, and we will choose the suitable motor and gearbox for your application.
