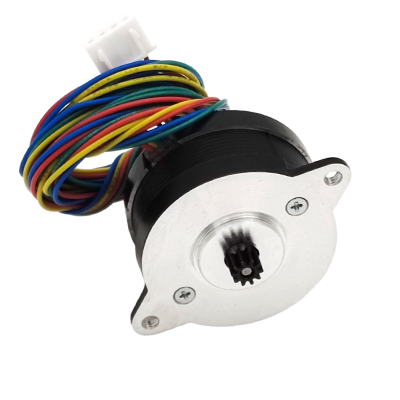

Round NEMA 14 Bipolar 1.8deg 0.09Nm 1A 2.37V 4 Wires Stepper Motor

Round NEMA 14 Bipolar 1.8deg 0.09Nm 1A 2.37V 4 Wires Stepper Motor

Manufacturer Part Number:36H020H-1004A-001
Frame Size: Φ36 mm
Motor Type: Bipolar Stepper
Holding Torque: 0.9 kgf.cm
Rated Current/phase: 1.0 A
Rated Voltage: 2.37 V
Connector:XHP-4

Send Inquiry
36H020H-1004A-001 DATASHEET
  • Fast Delievery
  • Quality Assurance
  • Customization AvailableCustomization Available
Product Introduction

General Specification

Step Angle Accuracy

±5%

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80K Max.

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100MΩMin.@ 500VDC

Dielectric strength

One minute@500VAC∙5mA Max.

Shaft Radial Play

0.06Max.@450g

Shaft Axial Play

0.08Max.@450g



Electrical Specification

Model Number 36H020H-1004A-001
Motor Type Bipolar
Step Angle 1.8°±5%
Number of Phases 2
Holding Torque 0.9 kgf. cm
Rated Current/phase 1.0A (peak value)
Rated Voltage 2.37V
Phase Resistance 2.37Ω±10%(20℃)
Phase Inductance 1.2mH±20% (1kHz 1V RMS)
Rotor Inertia 6g.cm²



Physical Specification

Frame Size Φ36mm
Body Length 20mm
Shaft Diameter N/A
Number of Lead 4
Lead Length 1000mm
Wire Gauge AWG26
Weight 92g



Gear Specification

Module 0.5
Number of Teeth 10
Pressure Angle 20°
Pitch Diameter Φ5
Addendum Circle Diameter Φ6
Base Tangent Length 2.284-0.01-0.05
Number of Teeth Spanned 2
Precision grade GB/T10095-1-2001 8
Material

40Cr+Quench

HRC36-42

Connection

A

B

C

D

Red

Yellow

Green

Blue





FAQ

Q: What are the primary characteristics of a Round NEMA 14 stepper motor?

A: Round NEMA 14 stepper motors are known for their compact and circular form factor. They are designed to provide precise and controlled rotational movement in a wide range of applications.



Q: What are the common applications of Round NEMA 14 stepper motors?

A: Round NEMA 14 stepper motors are used in a wide range of applications, including 3D printers, CNC machines, camera focus and zoom mechanisms, robotics, automated equipment, and various other devices that require precise control of rotational movement.



Q: How are Round NEMA 14 stepper motors controlled?

A: Round NEMA 14 stepper motors are controlled using stepper motor drivers or controllers. These devices generate the necessary signals to move the motor in precise steps. They are often interfaced with microcontrollers, PLCs (Programmable Logic Controllers), or computer systems to achieve accurate motion control.



Q: Can Round NEMA 14 stepper motors be used in DIY projects?

A: Yes, Round NEMA 14 stepper motors are commonly used in DIY (do-it-yourself) projects and hobbyist applications due to their compact size and versatility
