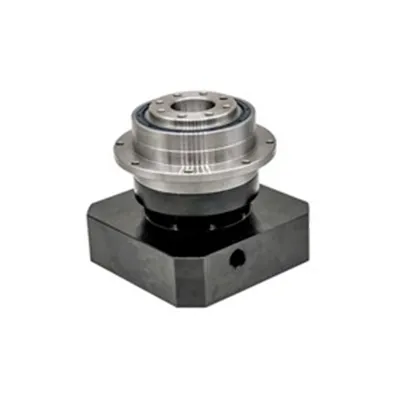

AD110 Series High Precision Planetary Gearbox
Type: planetary gearbox with helical teeth
Degree of gearbox protection grade: IP65
Ratio: 4, 5, 7, 10 (one stage); 16, 20, 25, 28, 35, 40, 50, 70, 100 (two stage)
Standard Backlash P1: ≤ 3 arcmin （one stage); ≤ 5 arcmin (two stage)
Standard Backlash P2: ≤ 5 arcmin ( one stage); ≤ 7 arcmin (two stage)
Efficiency: ≥ 97% (one stage); ≥ 94% (two stage)
- Fast Delievery
- Quality Assurance
Customization Available
Product Introduction
AD Naming Rule ( For example: AD-090N-010-63-19-1)
Performance Data
|
Technical Parameter |
1 stage |
2 stage | ||||||||||||
|
Ratio |
4 |
5 |
7 |
10 |
16 |
20 |
25 |
28 |
35 |
40 |
50 |
70 |
100 |
|
|
Nominal Output Torque T2N |
Nm |
270 |
330 |
300 |
230 |
270 |
270 |
330 |
300 |
300 |
270 |
330 |
300 |
230 |
|
Emergency Stop Torque T2NOT |
Nm |
3 times of Nominal Output Torque |
||||||||||||
|
Nominal Input Speed n1N |
rpm |
4000 |
||||||||||||
|
Max.Input Speed n1B |
rpm |
8000 |
||||||||||||
|
Reduced Backlash P1 |
arcmin |
≤3 |
≤5 |
|||||||||||
|
Standard Backlash P2 |
arcmin |
≤5 |
≤7 |
|||||||||||
|
Torsional Rigidity |
Nm/arcmin |
82 |
||||||||||||
|
Max.Bending moment M2KB |
Nm |
430 |
||||||||||||
|
Max.Axial Load F2aB |
N |
2990 |
||||||||||||
|
Service Life |
hr |
20000 |
||||||||||||
|
Efficiency η |
% |
≥97% |
≥94% | |||||||||||
|
Operating Temp |
℃ |
-10℃-90℃ |
||||||||||||
|
Lubrication |
Synthetic lubrication oils |
|||||||||||||
|
Degree of Gearbox Protection |
IP65 |
|||||||||||||
|
Mounting Position |
all directions |
|||||||||||||
|
Noise Level( n=3000rpm,No Load,50cm ) |
dB(A) |
58 |
56 |
55 |
54 |
58 |
58 |
58 |
58 |
57 |
55 |
55 |
55 |
55 |
|
Mass Moments of Inertia J1 |
kg.cm2 |
2.87 |
2.71 |
2.62 |
2.57 |
0.47 |
0.47 |
0.47 |
0.47 |
0.47 |
0.47 |
0.47 |
0.47 |
0.47 |
Mechanical Dimension
Matched Motor Size
| AD110 Series | Stage | Ratio | Diameter of output shaft | Diameter of input shaft | Diameter x length of motor shaft/Diameter and height of pilot on motor/QTYs-diameter-spacing of mounting holes |
| One Stage | 4/5/7/10 | 80 | 19 |
Φ19×30/Φ70×3/4-Φ5.5-Φ90 Φ19×30/Φ70×3/4-Φ6.5-Φ90 Φ19×30/Φ80×3/4-Φ6.5-Φ100 Φ19×50/Φ95×6/4-Φ9-Φ130 Φ19×58/Φ110×6/4-Φ9-Φ145 |
|
| 22 | Φ22×58/Φ110×6/4-Φ9-Φ145 | ||||
| 24 |
Φ24×48/Φ95×6/4-Φ9-Φ115 Φ24×58/Φ95×6/4-Φ6.5-Φ115 Φ24×58/Φ110×6/4-Φ9-Φ145 |
||||
| 28 | Φ28*63/Φ110*6/4-Φ9-Φ145 | ||||
| 35 | Φ35×80/Φ114.3×8/4-Φ13.5-Φ200 | ||||
| Two Stage |
16/20/25/28/ 35/40/50/70/100 |
80 | 19 |
Φ19×30/Φ70×3/4-Φ5.5-Φ90 Φ19×30/Φ70×3/4-Φ6.5-Φ90 Φ19×30/Φ80×3/4-Φ6.5-Φ100 Φ19×50/Φ95×6/4-Φ9-Φ130 Φ19×58/Φ110×6/4-Φ9-Φ145 |
|
| 22 | Φ22×58/Φ110×6/4-Φ9-Φ145 | ||||
| 24 |
Φ24×48/Φ95×6/4-Φ9-Φ115 Φ24×58/Φ95×6/4-Φ6.5-Φ115 Φ24×58/Φ110×6/4-Φ9-Φ145 |
Product detail
Original: Jiangsu, China
Certification: ISO9001,CE, ISO14001, etc.
Price: Negotiable
Payment: TT
Packing: export standard
MOQ: Varies by model
Delivery date: about 30-35 days (For urgent orders, we can expedite);
Market: United States/South Korea/Sweden/Germany/Italy, etc.
