60X60mm 400w 3000rpm 1.27Nm 220VAC Servo Motor
Model number: 60SV11302-0400B
Frame size: 60x60mm
Protection grade: IP54(customizable)
Rated power: 400W
Rated torque: 1.27N.m
Rated voltage: 220V
Rated current: 2.4A
Rated speed: 3000rpm
- Fast Delievery
- Quality Assurance
Customization Available
Product Introduction
Product Overview
The 400-watt servo motor, featuring a robust frame size of 60x60mm, stands as a powerful and reliable solution for precision applications. Having a protection grade of IP54, this 400w servo motor ensures adaptability to varying environmental conditions. Designed for a rated voltage of 220V and a rated current of 2.4A, this servo motor delivers a substantial rated torque of 1.27N.m. With a rated speed of 3000rpm, it guarantees swift and accurate motion control, making it an excellent choice for applications demanding high performance and reliability.
Technical Specifications
|
Model |
Unit |
60SV11302-0400B |
|
Rated Power PN |
W |
400 |
|
Rated Torque TN |
N.m |
1.27 |
|
Rated Voltage uN |
VAC |
220 |
|
Rated Current lN |
A |
2.4±10% |
|
Rated Speed nN |
rpm |
3000 |
|
Max.Torque TMAX |
N·m |
3.8 |
|
Max.Current LMAX |
A |
7.2 |
|
Max.Speed nMAX |
rpm |
4500 |
|
Line Resistance RL |
Ω |
4.8±10% |
|
Line Inductance LL |
mH |
12.9±10% |
|
Rotor Inertia JM |
kg.m2 |
0.3*10-4 |
|
Back EMP Constant Ke |
V/krpm |
34±10% |
|
Electrical Time Constant Te |
ms |
2.8 |
|
Length |
mm |
140(172)±1 |
|
Weight |
KG |
1.6 |
|
Insulation Class |
F(155℃) |
|
|
IP Grade |
lP54(Can be customized according to customer requirements) |
|
|
Working Temperature |
℃ |
-20 ~ 40℃ |
|
Operating Environment |
Environment temperature:-20-40℃; Environmental humidity: |

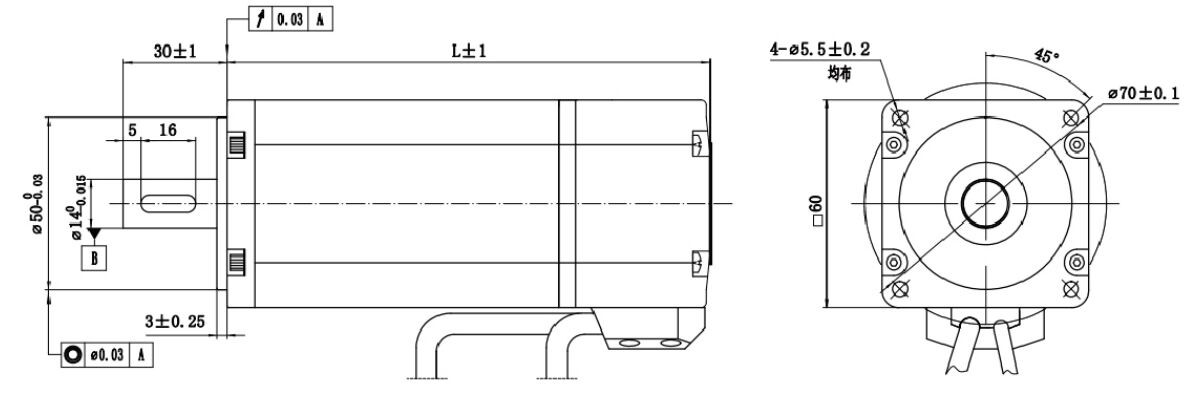

Mechanical Dimension
FQA
Q: Can servo motors be operated in harsh environments?
A: Servo motors can be operated in a wide range of environments, including some harsh conditions. However, their suitability for harsh environments depends on various factors, including the specific motor design, protection ratings, and the severity of the environmental conditions.
Q: What is servo motor resolution and why is it important?
A: Servo motor resolution refers to the smallest incremental movement or position change that the motor can achieve. It is typically specified in terms of counts or pulses per revolution (CPR/PPR) or in degrees per count. The resolution of a servo motor is essential because it directly affects the motor's ability to achieve precise positioning and control.
Q: Which shipping way can you provide?
A: We can provide shipping by sea, by air, and by express.
Q: How can we get a quote?
A: You can contact us with specifications: such as design, size, quantity, etc. And then our sales-people will quote within 3-5 working days.
Hot Tags: 60x60mm 400w 3000rpm 1.27nm 220vac servo motor, China 60x60mm 400w 3000rpm 1.27nm 220vac servo motor manufacturers, suppliers, factory
