80x80mm 600w 3000rpm 1.9Nm 48VDC Servo Motor
Model number: 80SV04302-0600B
Frame size: 80X80mm
Protection grade: IP54(customizable)
Rated power: 600W
Rated voltage: 48V
Rated current: 17A
Rated torque: 1.9Nm
Rated speed: 3000rpm
- Fast Delievery
- Quality Assurance
Customization Available
Product Introduction
This 600w servo motor features a compact frame size of 80X80mm and a body length of 128mm, which fits seamlessly into various applications. It has a customizable IP54 protection grade, which ensures resilience in diverse environments. Operating at a rated power of 600W, voltage of 48V, and current of 17A, this servo motor delivers a robust performance. Boasting a rated torque of 1.9Nm and a swift rated speed of 3000rpm, it promises precision and speed in every operation.
Technical Specifications
|
Model |
Unit |
80SV04302-0600B |
|
Rated Power PN |
W |
600 |
|
Rated Torque TN |
N.m |
1.9 |
|
Rated Voltage uN |
VAC |
48 |
|
Rated Current lN |
A |
17 |
|
Rated Speed nN |
rpm |
3000 |
|
Max.Torque TMAX |
N·m |
5.7 |
|
Max.Current LMAX |
A |
51 |
|
Max.Speed nMAX |
rpm |
4200 |
|
Line Resistance RL |
Ω |
0.08 |
|
Line Inductance LL |
mH |
0.61 |
|
Rotor Inertia JM |
kg.m2 |
1.03*10-4 |
|
Back EMP Constant Ke |
V/krpm |
8 |
|
Electrical Time Constant Te |
ms |
7.6 |
|
Length(with brake) |
mm |
128(165) |
|
Weight |
KG |
3.1 |
|
Insulation Class |
B(155℃) |
|
|
IP Grade |
IP54(Can be customized according to customer requirements) |
|
|
Working Temperature |
℃ |
-20 ~ 40℃ |
|
Operating Environment |
Environment temperature:-20-40℃; Environmental humidity: |

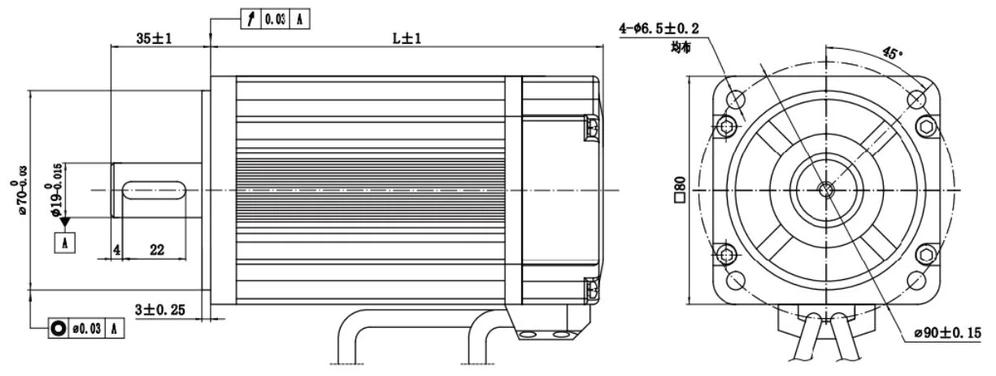

Mechanical Dimension
FAQ
Q: What are the characteristics of servo motors?
1. High precision control: Servo motor has a closed-loop control system, which can realize precise position, speed, and torque control with high control accuracy and repeatability.
2. Dynamic performance: Servo motors have good dynamic characteristics, and can quickly respond to changing control commands to achieve rapid acceleration, deceleration, and motion changes.
3. High torque density: Servo motors usually have high torque density, which means they produce large output torque in a relatively small volume and are suitable for applications with high torque requirements.
4. High-speed motion capability: Servo motors can achieve high-speed motion, which is suitable for applications requiring fast positioning and high-speed operation.
5. Feedback control: Servo motors are equipped with encoders or other position sensors that can provide accurate position feedback signals for closed-loop control.
6. Complex control system: Servo motors are often required to be equipped with a complex control system, including controllers, drives and feedback loops, to achieve precise control.
