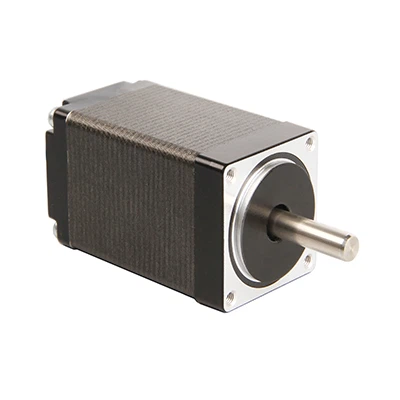

NEMA 11 Unipolar 1.8deg 0.068Nm (9.4oz.in) 0.95A 2.85V 28x28x45mm 6 Wires Stepper Motor
Manufacturer Part Number: 28H045H-0956
Motor Type: Unipolar Stepper motor
Step Angle: 1.8 deg
Holding Torque: 0.068Nm(9.4oz.in)
Rated Current/phase: 0.95A
Voltage: 2.85V
Phase Resistance: 3.0ohms
Inductance: 1.0mH ± 20%(1KHz)
Body Length: 45mm
- Fast Delievery
- Quality Assurance
Customization Available
Product Introduction
Technical Parameter
|
Item |
Specifications |
|
Step Angle Accuracy |
±5% |
|
Resistance Accuracy |
±10% |
|
Inductance Accuracy |
±20% |
|
Temperature Rise |
80K Max. |
|
Ambient Temperature |
-20℃~+50℃ |
|
Insulation Resistance |
100MΩMin.@ 500VDC |
|
Dielectric strength |
One minute@500VAC∙5mA Max. |
|
Shaft Radial Play |
0.06Max.@450g |
|
Shaft Axial Play |
0.08Max.@200g |
Technical Specification
|
Model No. |
Polar |
Rated |
Current/ |
Resistance/ |
Inductance/ |
Holding |
# of |
Rotor |
Weight |
Length |
|
|
28H045H-0956 |
Unipolar |
V |
A |
Ω |
mH |
oz-in |
kgf · cm |
6 |
g · cm2 |
kg |
mm |
|
2.85 |
0.95 |
3.0 |
1.0 |
9.4 |
0.68 |
12 |
0.14 |
45 |
|||

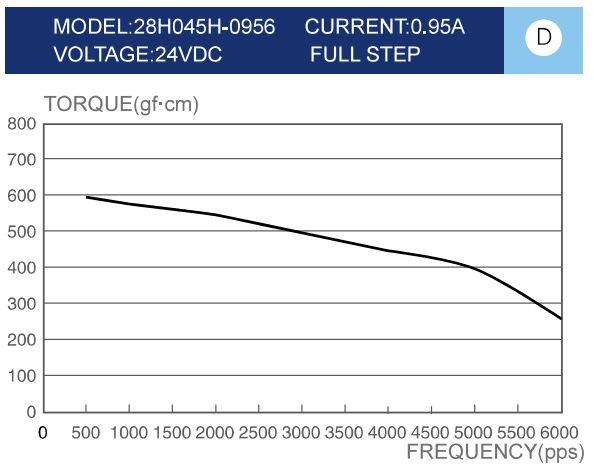

Pull Out Torque Curve
FAQ
Q: What is your minimum order quantity, can you send me samples?
A: The minimum order quantity varies depending on the specific model, and we are open to discussing it on a case-by-case basis. Additionally, we can provide samples upon request.
Q: What about the quality of your products?
A: Our company holds ISO9001 and ISO14001 certifications, ensuring that our manufacturing processes adhere to international standards for quality management and environmental management. Furthermore, all of our motors are CE certified, meeting the necessary European safety, health, and environmental protection requirements.
Q: What is the delivery time for your motors?
A: Typically, the production lead time for our motors is approximately 30-35 days. For urgent orders, we offer expedited processing. The transportation time will depend on the chosen method of shipping selected by our clients.
Q: Can the motors be customized according to our requirements, such as incorporating our logo?
A: Yes, we offer customization services for our motors to meet your specific requirements. This includes the option to incorporate your logo or make other customizations as needed.
