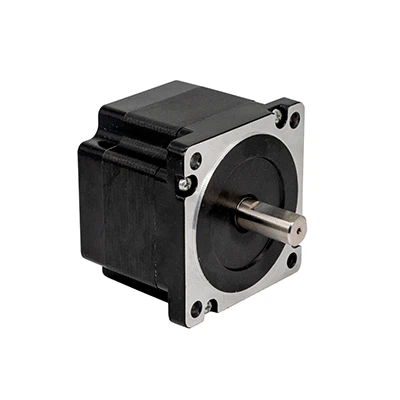

NEMA 14 Bipolar 1.8deg 0.18Nm (25oz.in) 0.7A 4.6V 35x35x33mm 4 Wires Stepper Motor

NEMA 14 Bipolar 1.8deg 0.18Nm (25oz.in) 0.7A 4.6V 35x35x33mm 4 Wires Stepper Motor

Manufacturer Part Number: 35H033H-0704
Frame Size:35x35mm
Motor Type: Bipolar Stepper motor
Step Angle: 1.8 deg
Holding Torque: 0.18Nm(25oz.in)
Rated Current/phase: 0.7A
Voltage: 4.6V
Phase Resistance: 6.5ohms
Inductance: 9.4mH ± 20%(1KHz)
Body length： 33mm

Send Inquiry
  • Fast Delievery
  • Quality Assurance
  • Customization AvailableCustomization Available
Product Introduction

Technical Parameter

Item

Specifications

Step Angle Accuracy

±5%

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80K Max.

Ambient Temperature

-10℃~+50℃

Insulation Resistance

100MΩMin.@ 500VDC

Dielectric strength

One minute@500VAC∙5mA Max.

Shaft Radial Play

0.06Max.@450g

Shaft Axial Play

0.08Max.@450g



Technical Specification

Model No.

Polar

Rated
Voltage

Current/
Phase

Resistance/
Phase

Inductance/
Phase

Holding
Torque

# of
Leads

Rotor
inertia

Weight

Length

35H033H-0704

Bipolar

V

A

Ω

mH

oz-in

kgf · cm

4

g∙ cm2

kg

mm

4.6

0.7

6.5

9.4

25

1.8

14

0.16

33



31

Pull Out Torque Curve

30



FAQ

Q: What is the location of your factory

A: Our factory is located in Changzhou City, Jiangsu Province, China.



Q: What is the detent torque?

A: Detent torque is the torque at which the stator locks the rotor when the stepper motor is not energized.



Q: What is the accuracy of the stepper motor and is it cumulative?

A: The general stepper motor accuracy is 3-5% of the step angle, and is not cumulative.



Q: What are the common sizes of stepper motors?

A: Stepper motors come in various sizes, ranging from small Nema6, Nema8, Nema 11 motors, etc used in miniature applications to larger NEMA 23, 24, or 34 motors used in industrial machinery. The size designation follows the National Electrical Manufacturers Association (NEMA) standards.



Q: What does "NEMA" mean?

A: NEMA means the standards set by “The National Electrical Manufacturers Association”, which is comprised of 560 major electrical manufacturers in the United States, primarily consisting of manufacturers of equipment and devices for power generation, transmission, distribution, and power applications. The purpose of standard setting is to eliminate misunderstandings between electrical product manufacturers and users and to specify the safety of these product applications.
