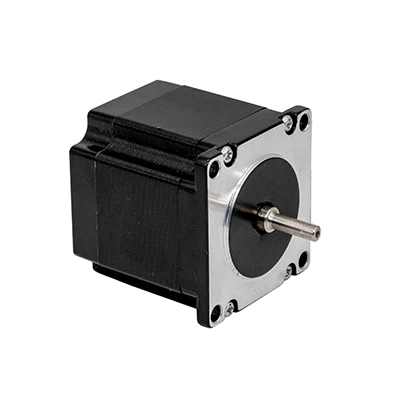

NEMA 23 Unipolar 1.8deg 0.72Nm (100oz.in) 57x57x51mm 6 Wires Stepper Motor

Technical Parameter

Technical Specification

Pull Out Torque Curve

FAQ

Q: What is microstepping?

A: Microstepping is a technique used to divide a full step of a stepper motor into smaller increments, allowing for smoother motion, improved positioning accuracy, reduced vibration, and lower audible noise compared to traditional full step or half step drive modes. It enhances motor performance by enabling finer control over the motor's position and providing higher resolution between steps.

Q: How microstepping improves motor performance?

A: 1. Smoother Motion: Microstepping reduces the discrete nature of stepper motor motion. Instead of moving in larger increments of full steps, the motor can move in smaller increments, resulting in smoother and more continuous motion. This is particularly beneficial in applications that require precise and fluid movements, such as CNC machines, 3D printers, and robotic systems.

2. Higher Resolution: Microstepping increases the resolution of the stepper motor system. By dividing the step angle into smaller increments, finer position control can be achieved. This allows for more accurate positioning and reduces the possibility of positional errors. Higher resolution is especially valuable in applications that demand precise control, such as camera systems, optical devices, or scientific instruments.

3. Reduced Vibration and Noise: Microstepping helps to minimize vibration and audible noise in stepper motor systems. When compared to traditional full-step or half-step drive modes, microstepping significantly reduces the abrupt changes in rotor position and current transitions, resulting in smoother torque generation and less mechanical resonance. This can lead to quieter operation and reduced vibrations, which is advantageous in applications where noise and vibration are critical factors, such as medical equipment or audio systems.

4. Elimination of Resonance Effects: Stepper motors have natural resonance points where vibrations can be amplified. Microstepping can help to avoid these resonance points or reduce their impact. By moving the rotor between these resonant positions, microstepping allows for smoother and more controlled operation, minimizing resonance-induced vibrations and positioning errors.

5. Enhanced Torque Linearity: Microstepping can improve torque linearity in stepper motor systems. By energizing the motor windings at intermediate levels, the torque produced by the motor can be more evenly distributed across the entire step angle. This leads to smoother torque output and better torque characteristics throughout the motor's operating range.
