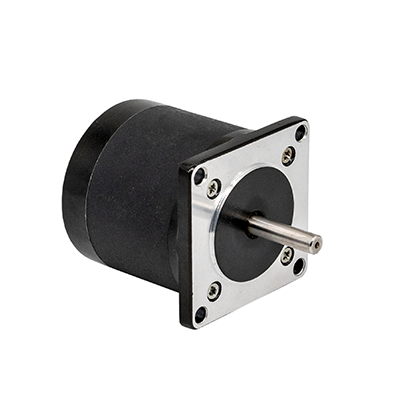

Round NEMA 23 Bipolar 1.8deg 0.36Nm (50oz.in) 0.5A 9.9V Ф57x28mm 4 Wires Stepper Motor

Technical Parameter

Item	Specifications
Step Angle Accuracy	±5%
Resistance Accuracy	±10%
Inductance Accuracy	±20%
Temperature Rise	80K Max.
Ambient Temperature	-20℃~+50℃
Insulation Resistance	100MΩMin.@ 500VDC
Dielectric strength	One minute@500VAC∙5mA Max.
Shaft Radial Play	0.06Max.@450g
Shaft Axial Play	0.08Max.@450g



Technical Specification

Model No.	Polar	Rated Voltage	Current/ Phase	Resistance/ Phase	Inductance/ Phase	Holding Torque		# of Leads	Rotor inertia	Weight	Length
		V	A	Ω	mH	oz-in	kgf · cm		g∙ cm2	kg	mm
57H028H-0504	Bipolar	9.9	0.5	19.8	25	50	3.6	4	38	0.48	28





Pull Out Torque Curve











































FAQ

Q: What kind of packaging do you use for your motors

A: Our motors are put inside the shock-absorbing foam. Each pocket has one motor so that we can make sure the motors won’t collapse each other and can endure fierce vibration during transportation.



Q: What are the factors that need to consider when choosing a motor?

A: When choosing a stepper motor, several factors need to be considered, including load requirements, required speed and precision, availability of power and control circuits, and cost.



Q: May I know which payment will be accepted by your company?

A: We accept T/T payment. Paypal payment is only for the sample.



Q: Can the products be customized to the customer's requirements?

A: Yes, the specifications stated above are the standard ones, we can design and manufacture as required.
