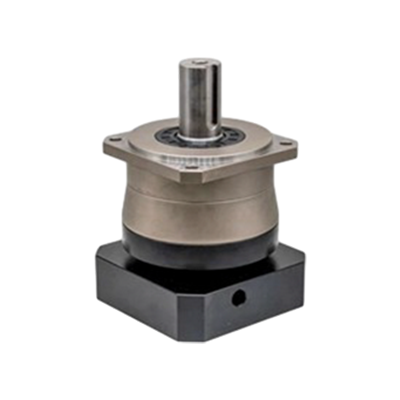

AEP115 Series High Precision Planetary Gearbox
Type: planetary gearbox with helical teeth
Degree of gearbox protection grade: IP65
Ratio: 3, 4, 5, 7, 10 (one stage)
Ratio: 15, 16, 20, 25, 28, 30, 35, 40, 50, 70, 100 (two stage)
Standard Backlash P1:≤ 3 arcmin（one stage); ≤ 5 arcmin (two stage)
Standard Backlash P2:≤ 5 arcmin ( one stage); ≤ 7 arcmin (two stage)
Eficiency :≥ 95% (one stage); ≥ 92% (two stage)
- Fast Delievery
- Quality Assurance
Customization Available
Product Introduction
AEP Naming Rule ( For example: AEP-090N-010-22-19-4)
Performance data
|
Technical Parameter |
1 stage |
2 stage | |||||||||||||||
|
Ratio |
3 |
4 |
5 |
7 |
10 |
15 |
16 |
20 |
25 |
28 |
30 |
35 |
40 |
50 |
70 |
100 |
|
|
Nominal Output Torque T2N |
Nm |
208 |
290 |
330 |
300 |
230 |
208 |
290 |
290 |
330 |
300 |
310 |
300 |
260 |
330 |
300 |
230 |
|
Emergency Stop Torque T2NOT |
Nm |
3 times of Nominal Output Torque |
|||||||||||||||
|
Nominal input Speed n1N |
rpm |
4000 |
|||||||||||||||
|
Max.Input Speed n1B |
rpm |
8000 |
|||||||||||||||
|
Reduced Backlash P1 |
arcmin |
≤3 |
≤5 |
||||||||||||||
|
Standard Backlash P2 |
arcmin |
≤5 |
≤7 |
||||||||||||||
|
Torsional Rigidity |
Nm/arcmin |
25 |
|||||||||||||||
|
Max.Bending moment F2rB |
N |
6100 |
|||||||||||||||
|
Max.Axial Load F2aB |
N |
3350 |
|||||||||||||||
|
Service Life |
hr |
20000 |
|||||||||||||||
|
Efficiency η |
% |
≥95% |
≥92% | ||||||||||||||
|
Operating Temp |
℃ |
-10℃~90℃ |
|||||||||||||||
|
Lubrication |
Synthetic lubrication oils |
||||||||||||||||
|
Degree of Gearbox Protection |
IP65 |
||||||||||||||||
|
Mounting Position |
all directions |
||||||||||||||||
|
Noise Level( n=3000rpm, Na Load.50cm) |
dB(A) |
68 |
68 |
65 |
62 |
60 |
66 |
66 |
64 |
64 |
62 |
62 |
62 |
60 |
58 |
58 |
58 |
|
Mass Moments of Inertia J1 |
kg.cm2 |
3.25 |
2.74 |
2.71 |
2.62 |
2.57 |
0.47 |
0.48 |
0.47 |
0.47 |
0.48 |
0.47 |
0.47 |
0.47 |
0.44 |
0.44 |
0.44 |
Mechanical Dimension
Matched Motor Size
|
AEP115 Series |
Stage | Ratio | Diameter of output shaft | Diameter of input shaft | Diameter x length of motor shaft/Diameter and height of pilot on motor/QTYs-diameter-spacing of mounting holes |
| One Stage | 3/4/5/7/10 | 32 | 19 |
Φ19×30/Φ70×3/4-Φ5.5-Φ90 Φ19×30/Φ70×3/4-Φ6.5-Φ90 Φ19×30/Φ80×3/4-Φ6.5-Φ100 Φ19×50/Φ95×6/4-Φ9-Φ130 Φ19×58/Φ110×6/4-Φ9-Φ145 |
|
| 22 | Φ22×58/Φ110×6/4-Φ9-Φ145 | ||||
| 24 |
Φ24×48/Φ95×6/4-Φ9-Φ115 Φ24×58/Φ95×6/4-Φ6.5-Φ115 Φ24×58/Φ110×6/4-Φ9-Φ145 |
||||
| 28 | Φ28*63/Φ110*6/4-Φ9-Φ145 | ||||
| 35 | Φ35×80/Φ114.3×8/4-Φ13.5-Φ200 | ||||
| Two Stage |
15/16/20/25/28/30/ 35/40/50/70/100 |
32 | 19 |
Φ19×30/Φ70×3/4-Φ5.5-Φ90 Φ19×30/Φ70×3/4-Φ6.5-Φ90 Φ19×30/Φ80×3/4-Φ6.5-Φ100 Φ19×50/Φ95×6/4-Φ9-Φ130 Φ19×58/Φ110×6/4-Φ9-Φ145 |
|
| 22 | Φ22×58/Φ110×6/4-Φ9-Φ145 | ||||
| 24 |
Φ24×48/Φ95×6/4-Φ9-Φ115 Φ24×58/Φ95×6/4-Φ6.5-Φ115 Φ24×58/Φ110×6/4-Φ9-Φ145 |
||||
| 28 | Φ28*63/Φ110*6/4-Φ9-Φ145 |
FAQ
Q: What is the purpose of a planetary gearbox?
A: The purpose of a planetary gearbox is to efficiently transmit torque and adjust rotational speed between an input shaft and an output shaft in various mechanical applications.
Q: How does a planetary gearbox achieve different gear ratios?
A: A planetary gearbox achieves different gear ratios by utilizing varying numbers of teeth on the gears and arranging them in specific configurations. By combining different gear sets, the gearbox can achieve a wide range of gear ratios.
Q: Is there the products tested before shipping?
A: Yes, absolutely. All our motors undergo thorough 100% QC testing before they are shipped to ensure their quality and performance.
Q: What is the efficiency of a precision planetary gearbox?
A: The efficiency of a precision planetary gearbox typically falls within the range of 90% to 98%, depending on factors such as gear quality, lubrication, and the specific loading conditions it operates under.
Q: How can I get to your factory?
A: Our factory is conveniently located near Shanghai Hongqiao Airport. Upon your arrival, we will arrange to pick you up at the airport.
Q: Are you a manufacturer, trading company, or a third party?
A: We are a manufacturer, and our company was established in 1999.
