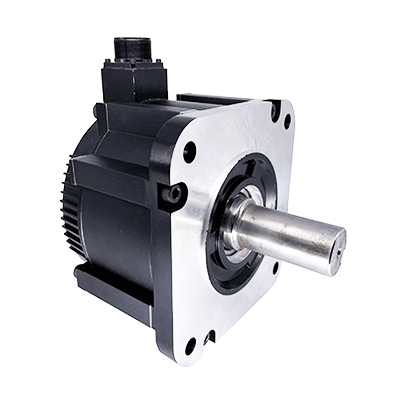

180x180mm 5700w 2000rpm 27Nm 33.9VAC/48VDC Servo Motor

180x180mm 5700w 2000rpm 27Nm 33.9VAC/48VDC Servo Motor

Model number: 180SV04202-5700B
Frame size: 180X180mm
Protection grade: IP65
Rated power: 5700w
Rated Voltage: 33.9VAC/48VDC
Rated current: 140A
Rated torque: 27Nm
Rated speed: 2000rpm

Send Inquiry
  • Fast Delievery
  • Quality Assurance
  • Customization AvailableCustomization Available
Product Introduction

Technical Specifications

Model

Unit

180SV04202-5700B

Rated Power PN

W

5700

Rated Torque TN

N.m

27

Rated Voltage uN

VAC

33.9/48

Rated Current lN

A

140

Rated Speed nN

rpm

2000

Max.Torque TMAX

N·m

54

Max.Current LMAX

A

280

Max.Speed nMAX

rpm

2600

Line Resistance RL

Ω

7.5

Line Inductance LL

mH

0.13

Rotor Inertia JM

kg.m2

61.8

Back EMP Constant Ke

V/krpm

17

Electrical Time Constant Te

ms

13.5

Length

mm

202.5

Weight

KG



Insulation Class



F(155℃)

IP Grade



IP65

Working Temperature

℃

-20 ~ +40℃

Operating Environment



Environment temperature:-20-40℃; Environmental humidity:
<90%; Altitude: <1000m



Mechanical Dimension

41jpg



FAQ

Q: What are the advantages of using a servo motor?

A: 1. High precision and accuracy

2. Fast response times

3. Smooth and continuous motion

4. Variable speed and torque control

5. Ability to handle high loads



Q: Where are servo motors commonly used?

A: Servo motors are used in various applications, including CNC machines, robotics, industrial automation, aerospace, automotive systems (e.g., power steering), and even consumer electronics (e.g., camera gimbals).



Q: What is servo motor feedback, and why is it important?

A: Servo motor feedback is the information provided by sensors (encoders, resolvers) to the controller about the motor's current position and speed. It's crucial for the controller to adjust the motor's output accurately and maintain the desired position or speed.
