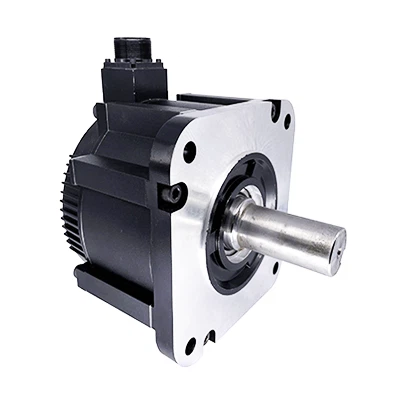

180x180mm 5500w 1500rpm 35Nm 33.9VAC/48VDC Servo Motor

Model number: 180SV04152-5500B
Frame size: 180X180mm
Protection grade: IP65
Rated power: 5500w
Rated Voltage: 33.9VAC/48VDC
Rated current: 140A
Rated torque: 35Nm
Rated speed: 1500rpm

Send Inquiry

Fast Delievery
Quality Assurance
Customization Available

Product Introduction

Technical Specifications

Model	Unit	180SV04152-5500B
Rated Power P_N	W	5500
Rated Torque T_N	N.m	35
Rated Voltage u_N	VAC	33.9/48
Rated Current l_N	A	140
Rated Speed n_N	rpm	1500
Max.Torque T_MAX	N·m	70
Max.Current L_MAX	A	280
Max.Speed n_MAX	rpm	2600
Line Resistance R_L	Ω	8
Line Inductance L_L	mH	0.16
Rotor Inertia J_M	kg.m2	74
Back EMP Constant Ke	V/krpm	20
Electrical Time Constant Te	ms	16.4
Length	mm	217.5
Weight	KG
Insulation Class		F(155℃)
IP Grade		IP65
Working Temperature	℃	-20 ~ +40℃
Operating Environment		Environment temperature:-20-40℃; Environmental humidity: <90%; Altitude: <1000m

Mechanical Dimension

41jpg

FAQ

Q: What about the quality of your products?

A: Our company holds ISO9001 and ISO14001 certifications, ensuring that our manufacturing processes adhere to international standards for quality management and environmental management. Furthermore, all of our motors are CE-certified, meeting the necessary European safety, health, and environmental protection requirements.

Q: What is your minimum order quantity, and can you send me samples?

A: The minimum order quantity varies depending on the specific model, and we are open to discussing it on a case-by-case basis. Additionally, we can provide samples upon request.

Q: What is a servo motor?

A: A servo motor is an electromechanical device that provides precise control of angular or linear position, velocity, and acceleration. It's commonly used in automation and robotics to move and control mechanical systems.
