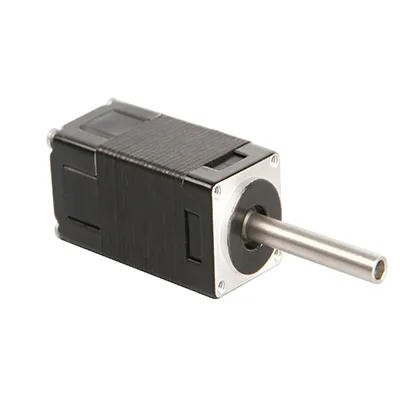

NEMA 6 Bipolar 1.8deg 0.0058Nm(0.8oz.in) 0.3A 6.6V 14x14x30mm 4 Wires Stepper Motor
Manufacturer Part Number: 14H030H-0304
Frame Size: 14x14mm
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 0.0058Nm(0.8z.in)
Rated Current/phase: 0.3 A
Rated Voltage: 6.6V
Phase Resistance: 22 Ω
Body Length: 30 mm
Inductance: 4.0 mH ± 20%(1KHz)
- Fast Delievery
- Quality Assurance
Customization Available
Product Introduction
Technical Parameter
|
Item |
Specifications |
|
Step Angle Accuracy |
±5% |
|
Resistance Accuracy |
±10% |
|
Inductance Accuracy |
±20% |
|
Temperature Rise |
80K Max. |
|
Ambient Temperature |
-20℃~+50℃ |
|
Insulation Resistance |
100MΩMin.@ 500VDC |
|
Dielectric strength |
One minute@500VAC∙5mA Max. |
|
Shaft Radial Play |
0.06Max.@450g |
|
Shaft Axial Play |
0.08Max.@100g |
Technical Specification
|
Model No. |
Polar |
Rated |
Current/ |
Resistance/ |
Inductance/ |
Holding Torque |
# of Leads |
Rotor |
weight |
Length |
|
|
V |
A |
Ω |
mH |
oz-in |
kgf∙ cm |
g · cm2 |
kg |
mm |
|||
|
14H030H-0304 |
Bipolar |
6.6 |
0.3 |
22 |
4 |
0.8 |
0.058 |
4 |
0.5 |
0.03 |
30 |
Pull Out Torque Curve
FAQ
Q: Can I request to advance the shipment?
A: It should depend on whether there is sufficient inventory in our warehouse.
Q: Can you produce motors according to our drawings?
A: Yes, We have our own machining workshop and can meet the needs of different customers for customized products, even the length, thickness, shape, and size of a shaft can be customized according to customer requirements.
Q: How is your quality control?
A: From raw materials to finished product shipping inspection, product control is carried out by relevant quality personnel at every step of the process to avoid defective products reaching customers.
Q: How can I place an order?
A: You can contact any of our salespeople for an order. Please provide the details of your requirements as clearly as possible. So we can send you the offer at the first time.
Q: How do you choose a stepper motor?
A: When choosing a stepper motor, several factors need to be considered, including load requirements, required speed and precision, availability of power and control circuits, and cost.
